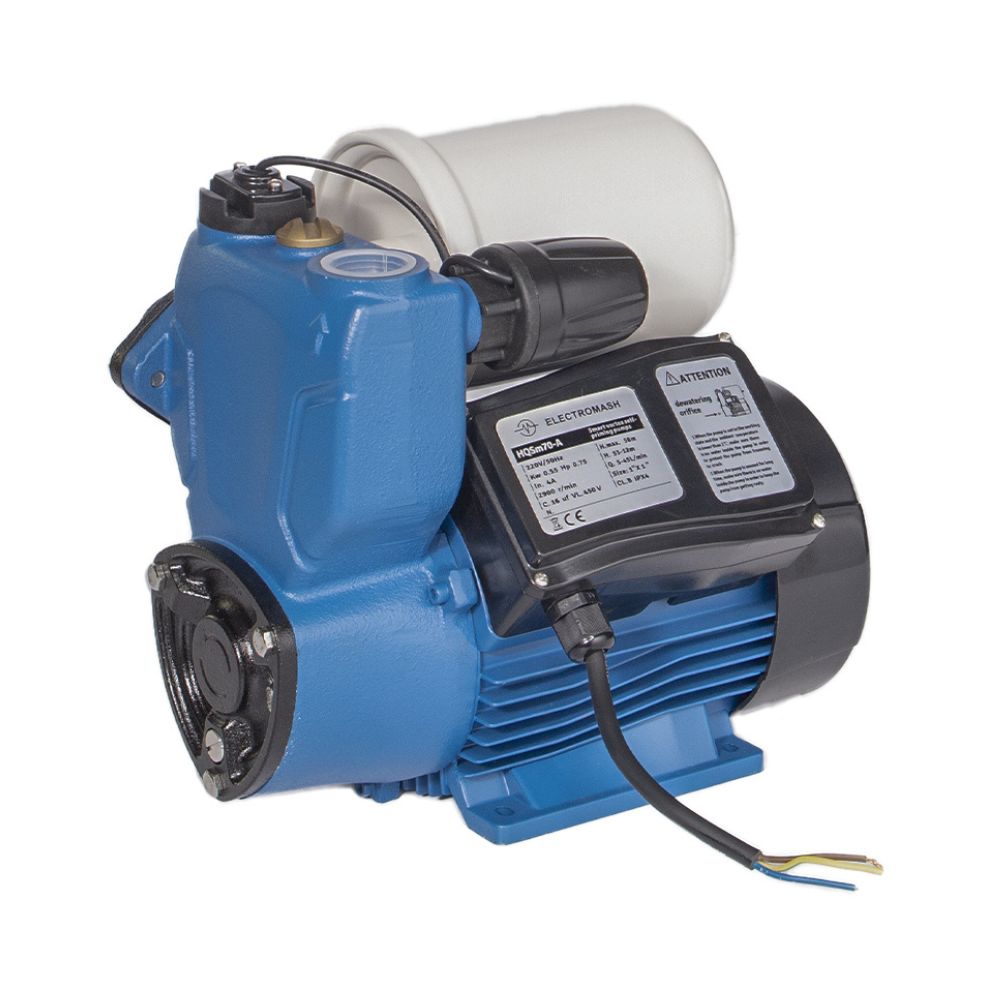

Mini hydrophore pump Electromash HQSM 60, power 0.37 kW, head 35 m, flow 2100 l/h

The HQSM 60 mini booster pump is a highly efficient self-priming peripheral pump designed to operate with clean water , free from abrasive particles or aggressive chemicals. It is extremely compact , easy to install and is the perfect solution for domestic water supply systems .

The HQSm 60 model is equipped with an electronic pressure switch with the ability to adjust the lower cut-in limit, which provides more precise control and less wear on the system. It is suitable for increasing the pressure in the water supply network of apartments, houses or villas, as well as for garden irrigation , filling or draining tanks and other household applications.

Thanks to the self-priming function , after initial filling of only the pump compartment, the device starts working without the need for additional venting. It is recommended that the pressure in the membrane vessel be around 2 bar , with the maximum pressure of the model reaching 3.0 bar .

Technical specifications:

• Power: 0.37 kW

• Inlet / Outlet: 1"

• Flow rate: 2100 l/h

• Head: up to 35 m

• Maximum pressure: 3.0 bar

• Recommended pressure in the expansion vessel: about 2 bar
